TD75 general belt conveyor

Time:2016-04-15　Form:Jiangsu Wuyun　Hit:3136

1. Use and scope of application

TD75 general belt conveyor features simple structure, large transport quantity, convenient operation and maintenance, low cost, versatile application and other advantages, and is widely applied to various fields including metallurgy, coal, transport, construction material, mine, harbor, etc. for transport of bulk materials and items packed in sets. The transmission distance and height of this product can be customized, and the maximum dip angle of transmission can reach 22°. The product is capable of long distance transport operation.

This conveyor is applicable to operation environment with temperature around -15℃~40℃. With corresponding protective measures applied, it can also operate under conditions with special requirements, such as explosion-proof, waterproof, corrosion/high temperature/cold resistant.

1.1 Technical features and structure diagram

?Transport capacity of belt conveyor is below 2.5t/m3

?Belt conveyor can be divided into the following categories according to belt width: 500, 650, 800, 1000, 1200, 1400

?Belt conveyor can be divided into the following categories according to belt velocity: 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 4.0

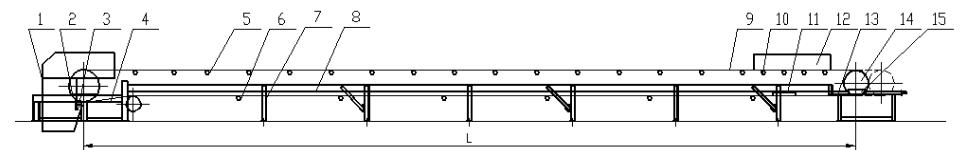

1. Head funnel 2.Head drum 3.Spring cleaner 4.Headstock 5.Carrying idler 6.Return idler 7.Landing leg 8.Middle frame 9.Tape carrier 10.Buffer idler 11.Nonload section cleaner 12. Material-guiding groove 13.Tailstock 14.Tail drum 15.Tension device

1.2 Main technical parameters

Type of carrying idler	Belt velocity	Belt width (mm)						Type of carrying idler	Belt velocity	Belt width (mm)
		500	650	800	1000	1200	1400			500	650	800	1000	1200	1400
		Conveyor Q (t/h)								Conveyor Q (t/h)
Trough idler								Parallel idler
	0.8	78	131	―	―	―	―		0.8	41	67	118	―	―	―
	1.0	97	164	278	435	655	891		1.0	52	88	147	230	345	469
	1.25	122	206	348	544	819	1115		1.25	66	110	184	288	432	588
	1.6	156	264	445	696	1048	1427		1.6	84	142	236	368	553	753
	2.0	191	323	546	853	1284	1748		2.0	103	174	289	451	677	922
	2.5	232	391	661	1033	1556	2118		2.5	125	211	350	546	821	1117
	3.15	―	―	824	1233	1858	2528		3.15	―	―	―	―	―	―
	4.0	―	―	―	―	2202	2996		4.0	―	―	―	―	―	―

Notes: the transport capacity in the table is calculated when material volume-weight r=1.0t/m3, dip angle of conveyor = 0°~7°, and angle of move of material = 30°.

Up:Over

Down:DT II, DT II (A) fixed belt conveyor
